Analysis Instrument

Wet Sample Dividing Xshf2-3 Sample Separator for Sale

Jiangxi Victor International Mining Equipment Co., Ltd.
  • Sample Type:Liquid
  • Processing Method:Mix

Base Info

  • Model NO.:XSHF2-3
  • Warranty:1 Year
  • Environment:Normal Pressure and Temperature
  • Display:Pointer Display
  • Performance:Semi-automatic
  • Power Supply:380V
  • Weight:0-2L
  • Customized:Customized
  • OEM:Yes
  • Transport Package:Plywood Case
  • Specification:550*420*1260 mm
  • Trademark:WKD
  • Origin:China
  • HS Code:8474100000
  • Production Capacity:500 Sets,Month

Description

Basic Info.

Model NO. XSHF2-3 Warranty 1 Year Environment Normal Pressure and Temperature Display Pointer Display Performance Semi-automatic Power Supply 380V Weight 0-2L Customized Customized OEM Yes Transport Package Plywood Case Specification 550*420*1260 mm Trademark WKD Origin China HS Code 8474100000 Production Capacity 500 Sets/Month

Product Description

Product Description
 XSHF2-3 wet-type sample divider is applied to pulp equivalent division and wet test sample division in laboratory. The product is capable of dividing in small representative samples in solid content,particle size and chemical composition.
 Application
 New wet sample separator of sxhf2-3 is applicable to labs for geological, metallurgical, building material, coal and other industries for ore slurry reduction and wet sampling for product tests. Minor representative samples in terms of solid content, particle size fraction and chemical composition can be made by the splitter.
 Structure
 The main parts of XSHF2-3 Wet Splitter are: (1) feed hopper; (2) slurry conditioning drum; (3) slurry distributing part; (4) slurry intercepting part; (5) slurry gathering and containing part; (6) lathe bed; (7) control switch for slurry conditioning drum; and (8) control switch for distributor.The plate distributor rotates counterclockwise.
 Structure of Transmission System
 The moving system of splitter transmits slurry in two ways: (1) stirring transmission and (2) distribution transmission, both of which are driven by one single motor.

(1) The motor for stirring transmission feeds slurry to the driven shaft through belt pulley, getting the stirring impeller to rotate at constant speeds.
(2) The distributing transmission system is directly driven by high-precision reducing motor imported from Germany, which gets the distributor to operate counterclockwise at a constant speed.

 Features
 (1) Easy to operate
(2) Energy saving
(3) It is simple structure, convenient maintenance, reliable to use.
(4) Dividing the sample uniformity,high efficiency.

Technical Parameters
ModelUnitXSHF2-3
Realative error in weight%≤2%
Feeding density%5-50%
Feeding granularitymm-0.5
Handling capacityL/min2
Container capacityL/min≤4
Stirring motor powerw120
Divider motor powerw90
Boundary dimensionmm550*420*1260
Total weightkg≤90

Detailed Images

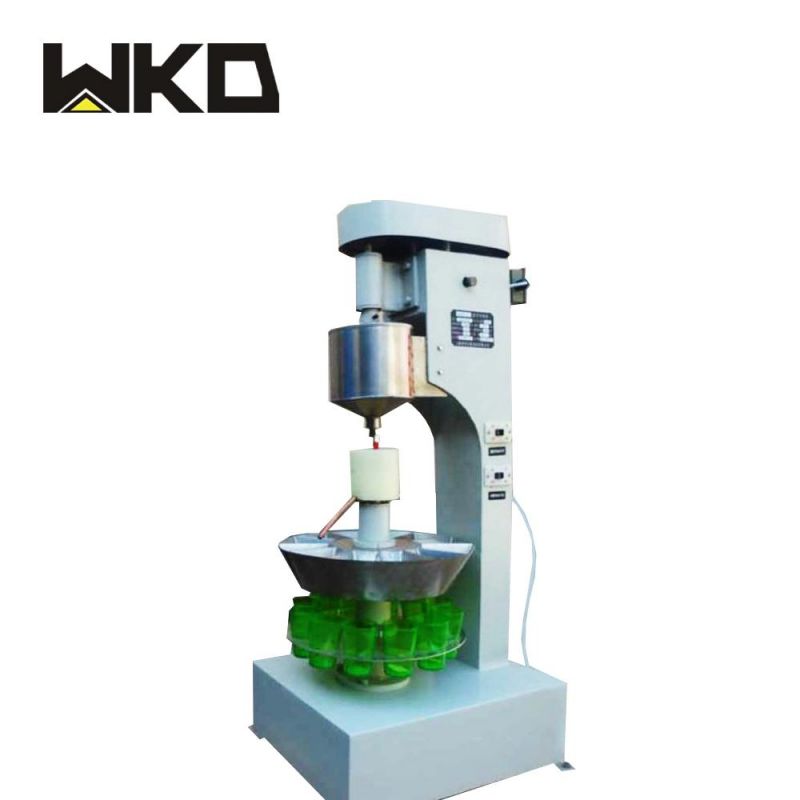

Wet Sample Dividing Xshf2-3 Sample Separator for Sale

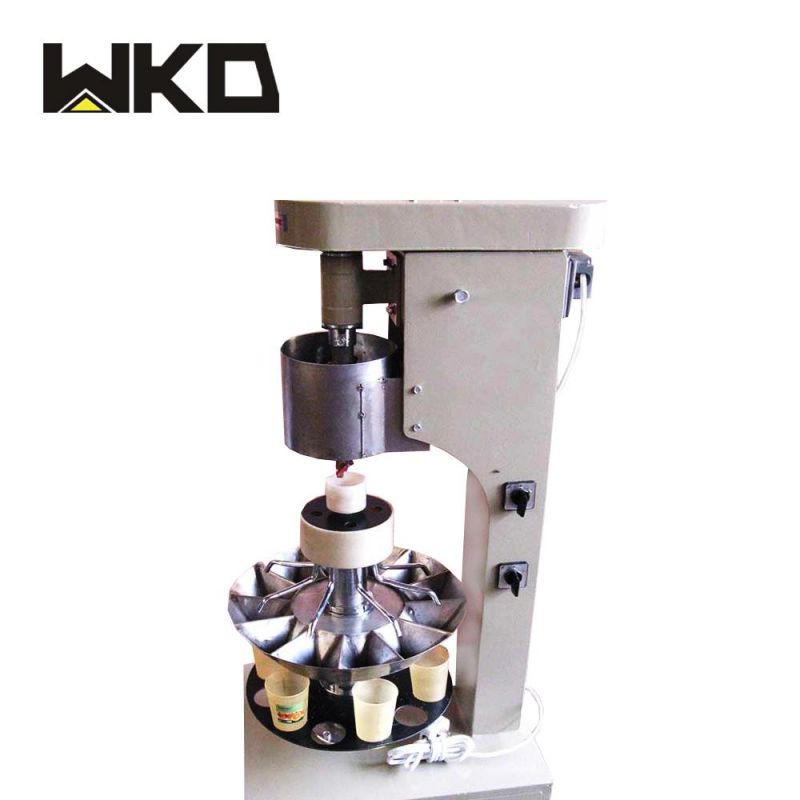

Wet Sample Dividing Xshf2-3 Sample Separator for Sale

Company Information

Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installation team.

With 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.

Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc.

We are expert especially at mining separating and lab mining plant, main products as below:

Gold trommel wash plant
Shaking table
Spiral chute separator
Centrifugal gold concentrator
Jig separator machines
Waste recycling machine
Grinding and mill crusher
Flotation cell machine
Magnetic separator
Laboratory mining plant


Package: FCL & LCL export standard container 20GP/40GP/40HQ.

FCL: main machinery gold shaking table in nude package and bulk in container, spare parts in wooden box or as your special requirement
LCL: machinery are packed in steel frame, base and deck are separately packed.

Shipping: by sea shipment, by air shipment or by courier express, it depends on you.

Payment Terms: T/T or L/C is preferable. T/T: 30% deposit and the balance before delivery

We will take photos for your products when finished and show you before delivery. Also keep you informed for any updated information including shipping before you receive it, to let you rest assured.

Delivery time: shipped in 15 days after payment
