ID50mm Dac Purify HPLC System for Develop Preparative Method

Good Science (Tianjin) Instrument Technology Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Appliance：The Analysis of Environmental Samples
  • Ray Type：No
  • Gaspath System：No
  • Detector：UV

Base Info

  • Model NO.：ID50mm
  • Energy Resolution：1%
  • Certification：CE, ISO
  • Spectrometer Detector：UV
  • Stationary Phase：Solid Adsorbent
  • Mobile Phase：Liquid
  • Chromatography Type：Liquid Chromatography
  • Chromatographic Column Type：Convetional Analytical Column
  • Chromatographic Column Length：ID50*500mm
  • Chromatographic Column Diameter：ID50mm
  • Weight：220kg
  • After Sales Servince：Yes
  • Installation Video：Yes
  • Injection Mode：Manual (Autosampler as Option)
  • Transport Package：Wooden
  • Specification：550*600*1400mm; 1200*670*730mm; 1240*1000*1750mm
  • Trademark：Good Science
  • Origin：China
  • HS Code：90272012
  • Production Capacity：200units Per Year

Description

100ml delivery pump,10MPA,SS pump head1 (Isocratic)  or  2(Gradient)UV Detector with 100ml flow cell1Mixer1Manual injection valve with sample loop1setSoftware1Work up kit1ID50DAC column1Electronic fraction valve can be controled by software1Auto fraction collector or 5/11 channels auto faction valve1

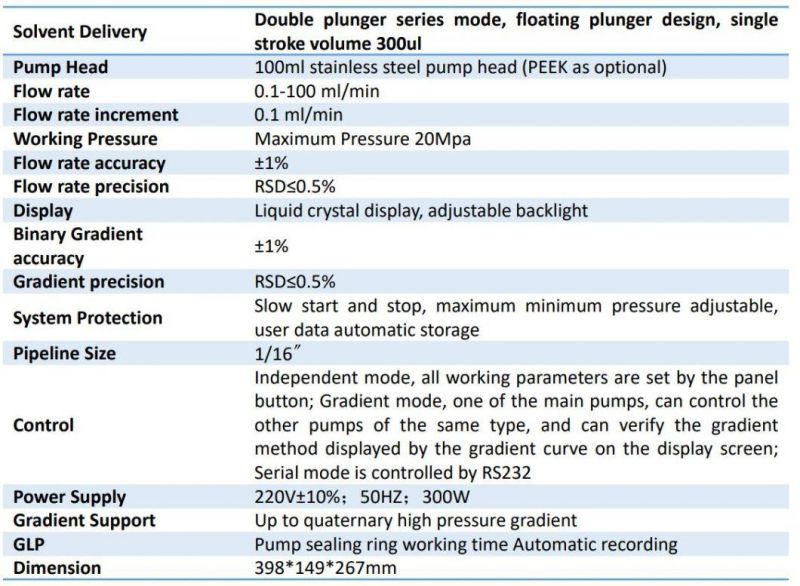

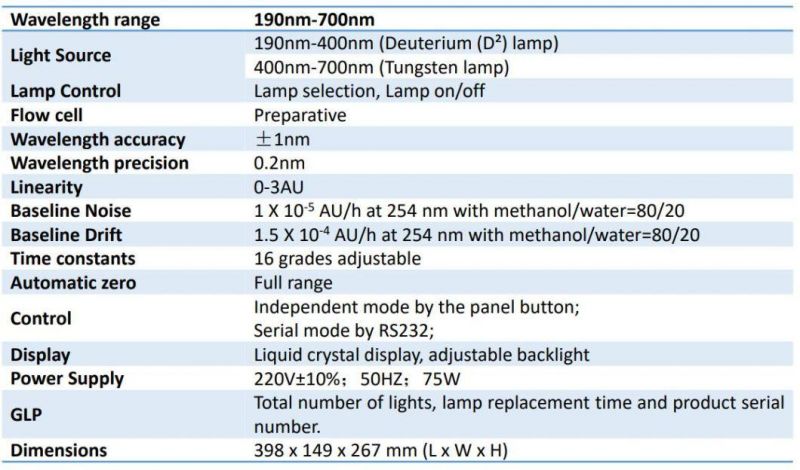

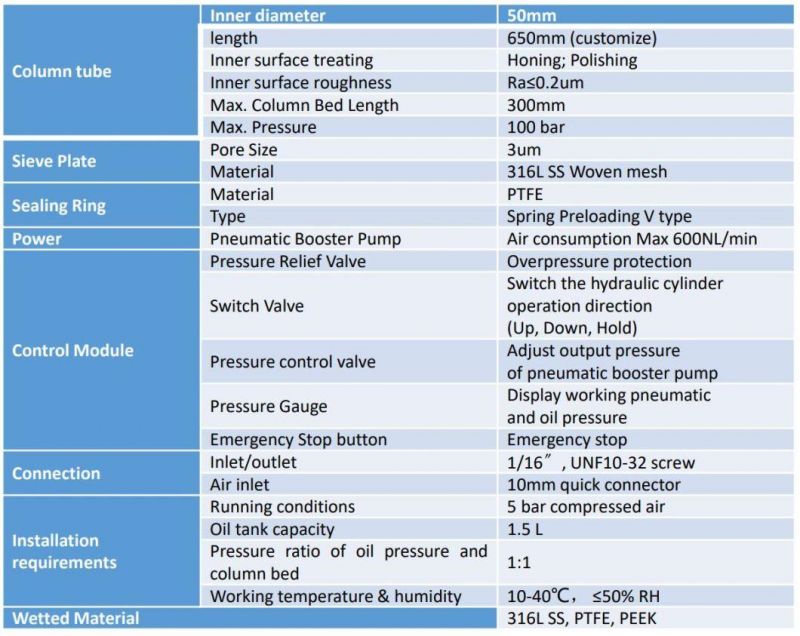

 Part Four:Technology data
ID50mm Dac Purify HPLC System for Develop Preparative Method
ID50mm Dac Purify HPLC System for Develop Preparative Method
ID50mm Dac Purify HPLC System for Develop Preparative Method



Part Five:packing

550*600*1400mm; 1 wooden cases for 50DAC column
1200*1000*1100mm  1 Wooden for preparative hplc system

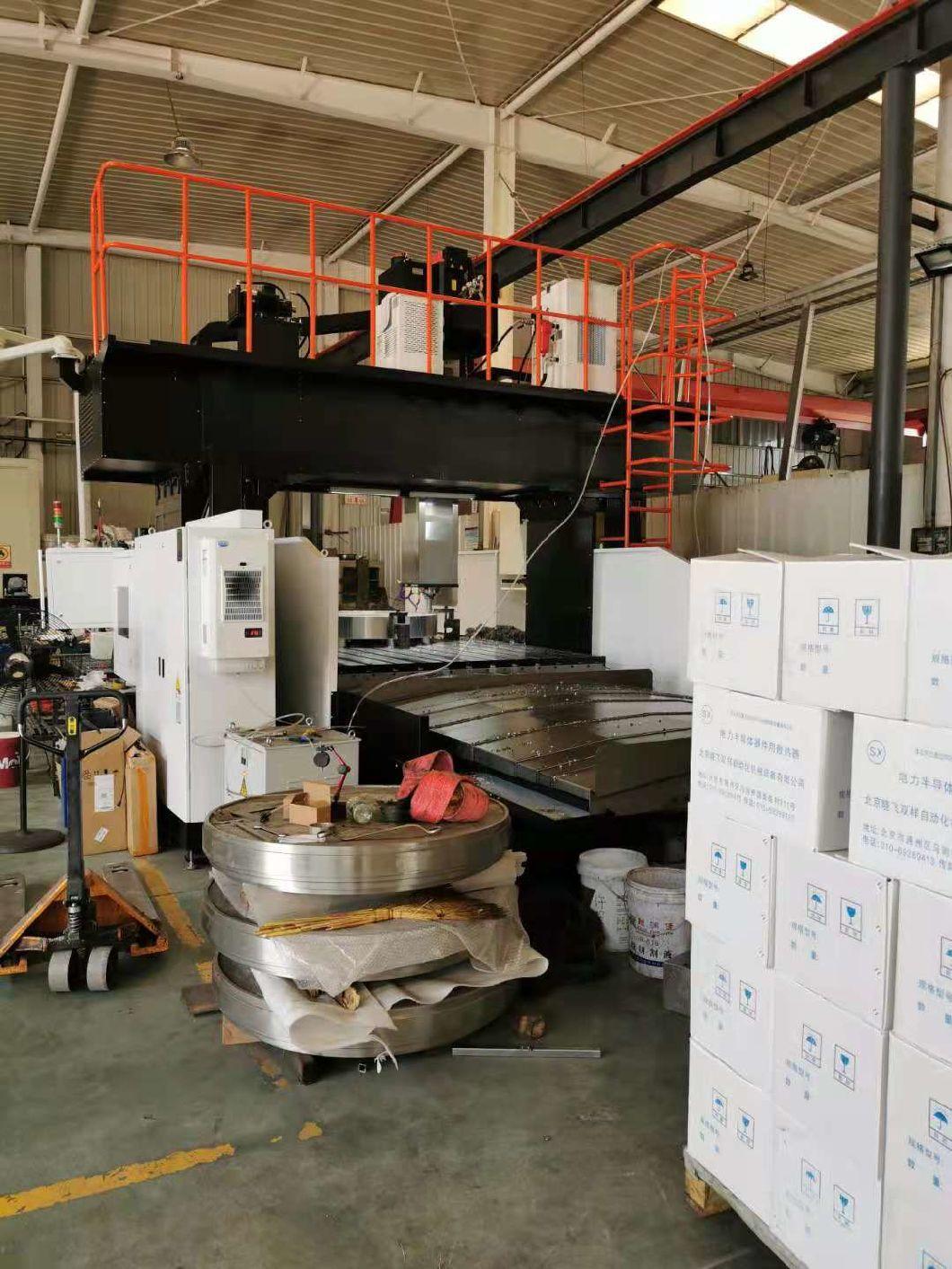

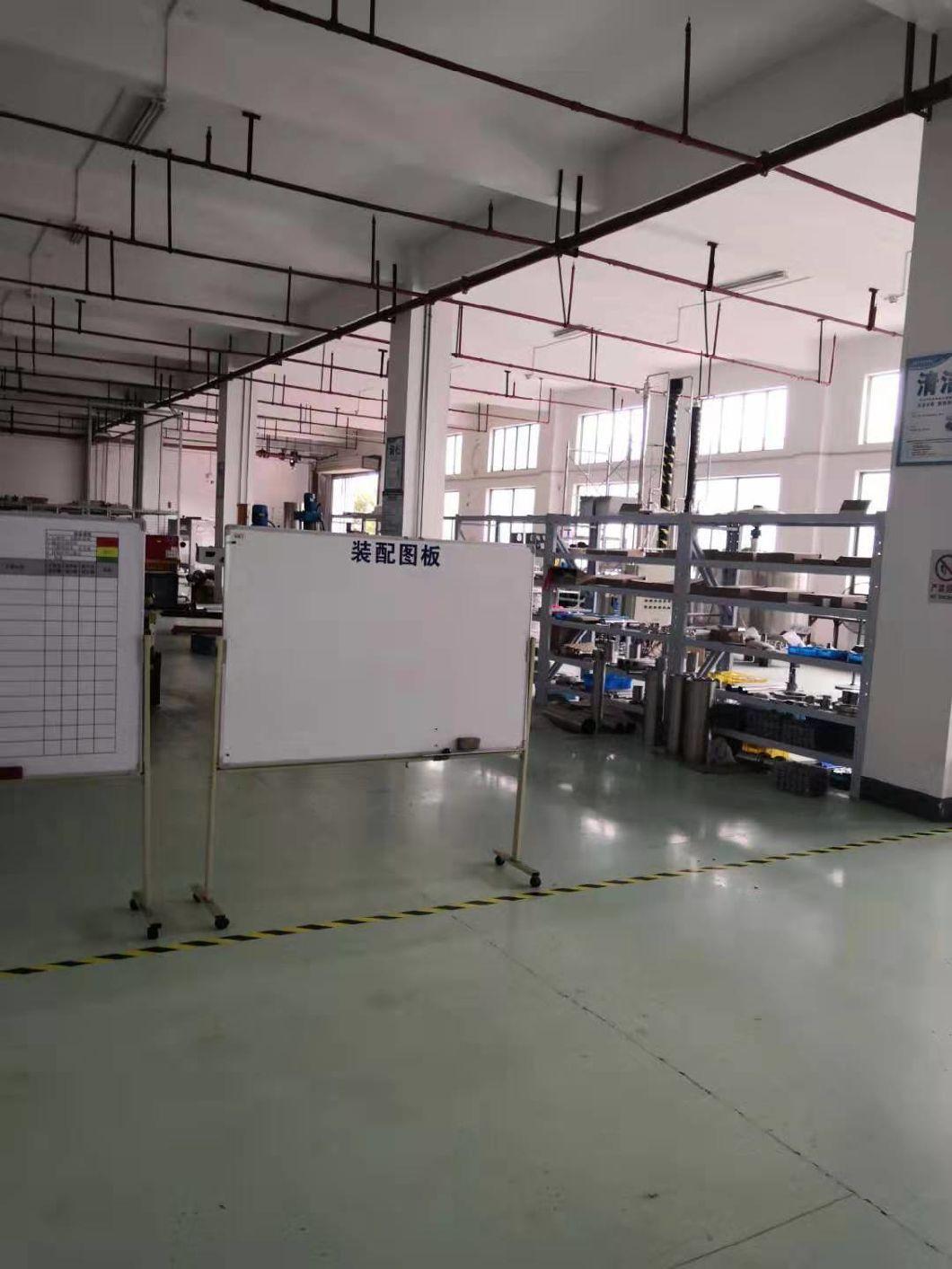

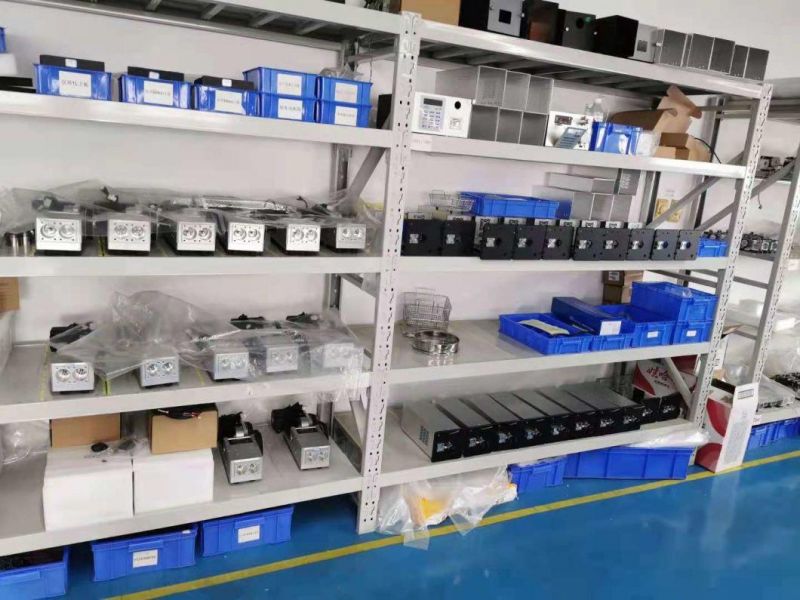

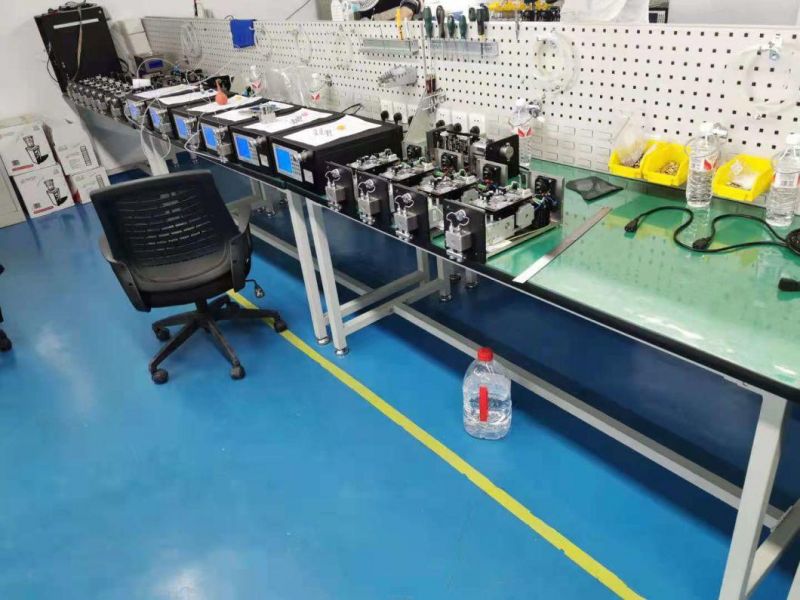

Part Six:Factory pictures:
ID50mm Dac Purify HPLC System for Develop Preparative Method
ID50mm Dac Purify HPLC System for Develop Preparative Method

ID50mm Dac Purify HPLC System for Develop Preparative MethodID50mm Dac Purify HPLC System for Develop Preparative Method
