• Model NO.：DTQ-600
• Warranty：1 Year
• Environment：Normal Pressure and Temperature
• Display：Pointer Display
• Performance：Semi-automatic
• Power Supply：220V
• Weight：0-50kg
• Certification：CE
• Customized：Customized
• Power：60 W
• Moving Frame Stroke：25mm
• Positioning Accuracy：0.01mm
• Spindle Revolution：100-600r,Min
• Saw Blade Diameter：100-150mm
• Voltage：220V 50Hz
• Dimensions：350×400×220mm
• Actual Weight：22kgs
• Model：Dtq-600
• Transport Package：Plywood Box
• Specification：350× 400× 220mm
• Trademark：OEM ODM
• Origin：China Shandong Others
• HS Code：8460402000
• Production Capacity：2000 Set Per Year
• Package size per unit product：50.00cm * 50.00cm * 80.00cm
• Gross weight per unit product：55.000kg

Basic Info.

Model NO. DTQ-600 Warranty 1 Year Environment Normal Pressure and Temperature Display Pointer Display Performance Semi-automatic Power Supply 220V Weight 0-50kg Certification CE Customized Customized Power 60 W Moving Frame Stroke 25mm Positioning Accuracy 0.01mm Spindle Revolution 100-600r/Min Saw Blade Diameter 100-150mm Voltage 220V 50Hz Dimensions 350×400×220mm Actual Weight 22kgs Model Dtq-600 Transport Package Plywood Box Specification 350× 400× 220mm Trademark OEM ODM Origin China Shandong Others HS Code 8460402000 Production Capacity 2000 Set Per Year

Packaging & Delivery

Package size per unit product 50.00cm * 50.00cm * 80.00cm Gross weight per unit product 55.000kg

Product Description

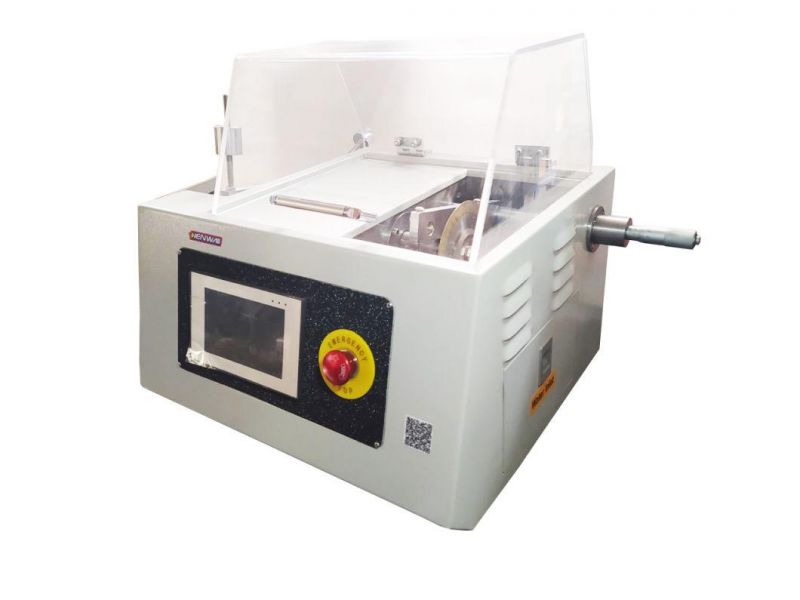

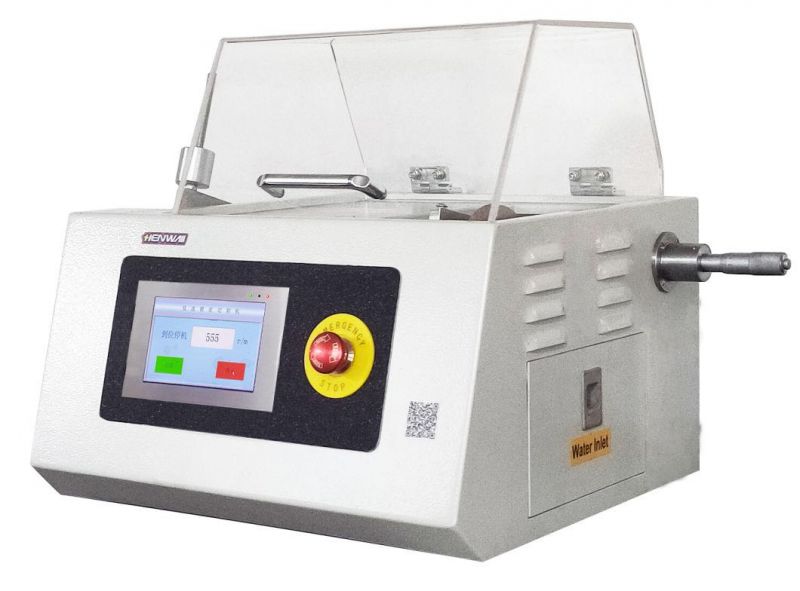

China Metallographic Sample Specimen Cutting Machine as for the Laboratory Use Equipment

This cutting machine is suitable for precise cutting of all kinds of thin, small and light special materials with a diameter of less than 20mm, and is especially suitable for cutting high-value brittle intraocular lenses.
General-purpose low-speed precision cutting machine, the operation panel is simple and intuitive.
The counterweight sliding loading system is more convenient and flexible to operate, and can minimize sample damage.
Closed-loop control cutting can prevent overloading and burning of motors and circuits. After the sample is cut, it can stop automatically. The use of imported diamond cutting discs works well.
Speed: 100-600 rpmmin, general-purpose low-speed precision cutting machine, programming control, closed-loop cooling system, standard single-saddle-shaped, double-saddle-shaped fixtures, irregular fixtures, inlay fixtures, flat-mouth fixtures and other fixtures are suitable for Cutting of thin and thin workpieces such as thin slices, glass, electronic circuit boards, etc.
Provide a fully enclosed transparent protective cover and power-off switch to protect the operator.
Power: 60W

Project	Index
Moving frame stroke	25mm
positioning accuracy	0.01mm
Spindle revolution	100-600r/min
Saw blade diameter	φ100~φ150mm
power	60W
Voltage	220V 50Hz
Dimensions	350×400×220mm
weight	22kg
