• Model NO.：GS100mmol
• Energy Resolution：2%
• Certification：CE, ISO
• Spectrometer Detector：LED
• Stationary Phase：Solid Adsorbent
• Mobile Phase：Liquid
• Chromatography Type：Oligo Sythesis Column
• Chromatographic Column Type：Oligo Systhesis Column
• Chromatographic Column Length：150mm
• Chromatographic Column Diameter：ID35
• Weight：87kg
• Shipping：DHL or FedEx
• Leadtime：6weeks
• Work Mode：Auto
• Transport Package：Wooden
• Specification：650*550*700mm;
• Trademark：Good Science
• Origin：China
• HS Code：90272012
• Production Capacity：10units Per Month

High-precision metering pump, the flow path is resistant to organic reagentsHigh productivity: One synthesis cycle can be completed within 20 minutes at the fastest;Various column positions availableOnline monitoring of UV, conductivity signal, pressureHigh degree of automation, low reagent consumptionThe software interface is friendly and the method can be edited flexiblyMonomer solution recyclingComply with FDA, USP related regulatory requirementssequential synthesis

General information:


Chemical Solvent CompatibilityCompatible with common reagents for DNA and RNA synthesis, acetonitrile, coupling reagents, capping reagents,
Oxidizing reagents, capping reagents, thio reagents, etc. (incompatible with tetrahydrofuran)Synthetic scale1umol  --12mmolsynthesis efficiency>99%forDNA >98%forRNACycle Time4.5 to 25min(Standard DNA)Reagent stabilization time in the instrument>2 weeks

Instrument information:


Demension400*550*480mmWeight60kgSysthesis column1/3/8Oligo GS 25ml/Oligo GS 100ml/Oligo GS 150ml2 x 25ml/min,2 x 100ml/min,2 x 150ml/minDetector200-600nmSystem protectionNitrogen or ArgonGas entry pressure0.3~0.35bar

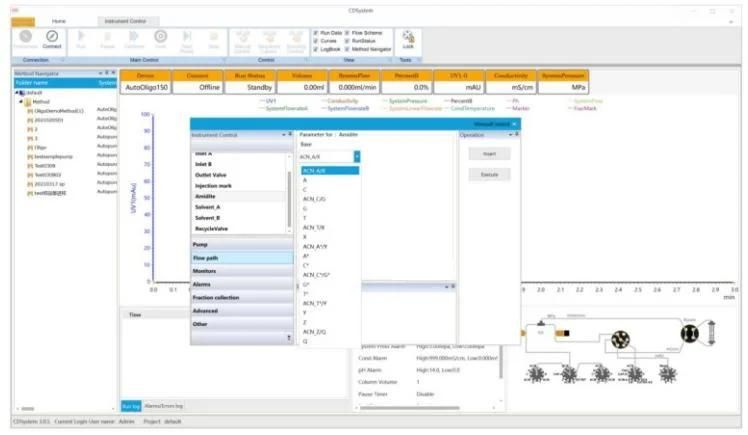

Software

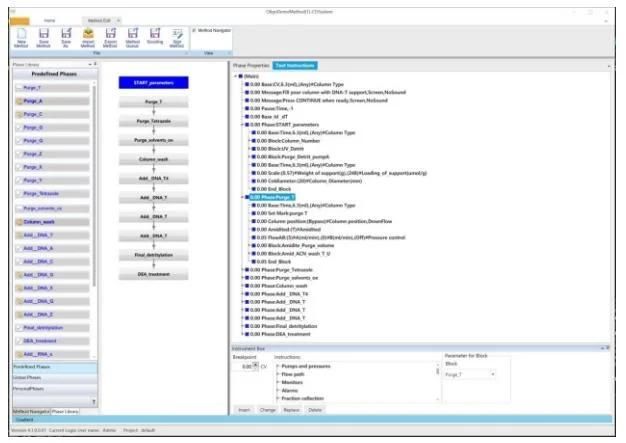

Oligo auto edit methods

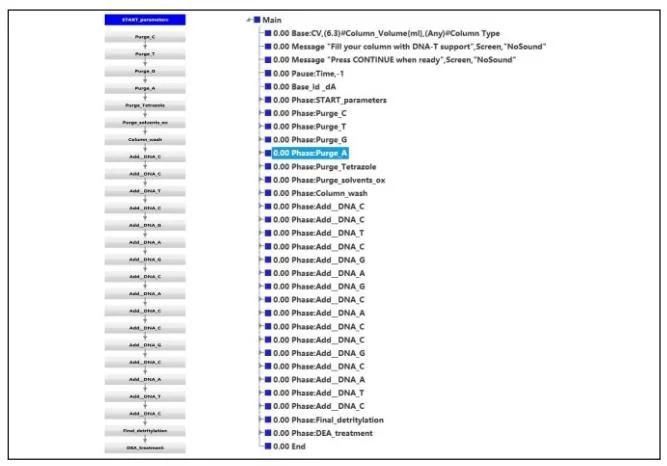

Synthesis process:

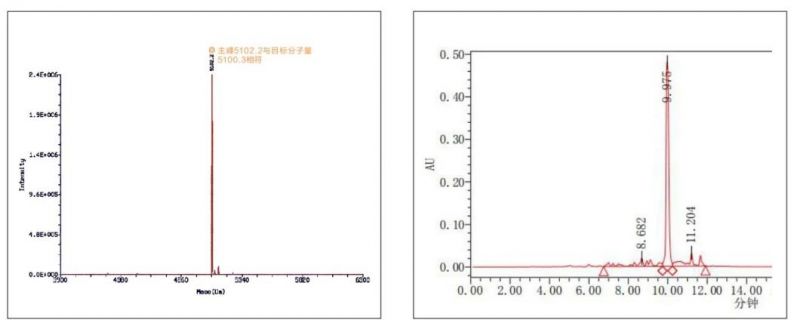

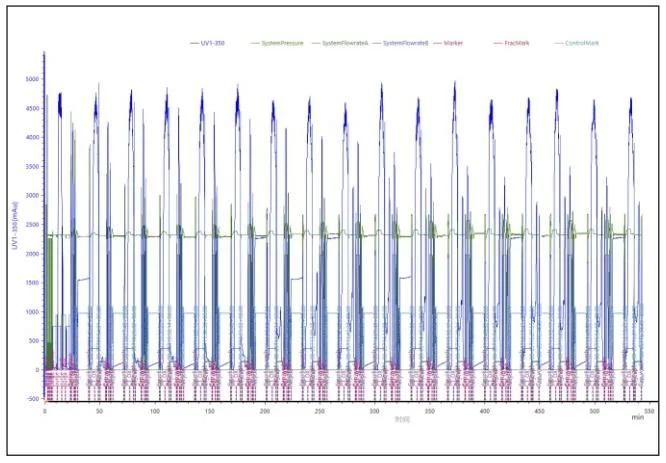

Result Analysis:
