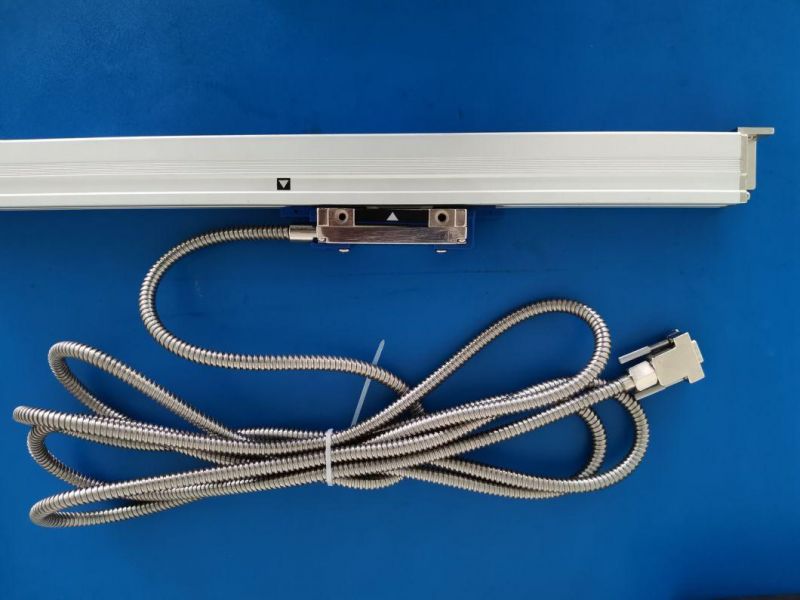

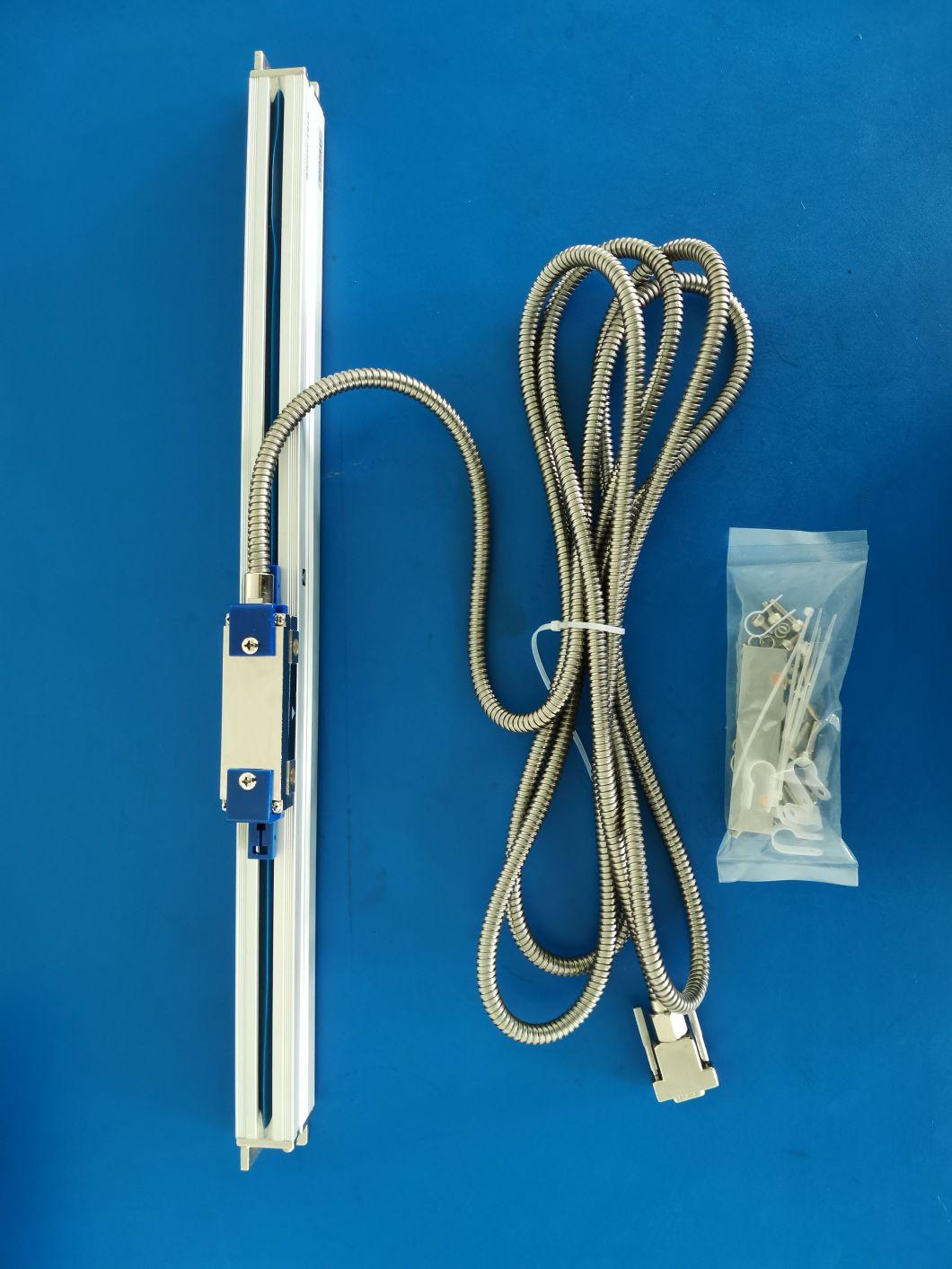

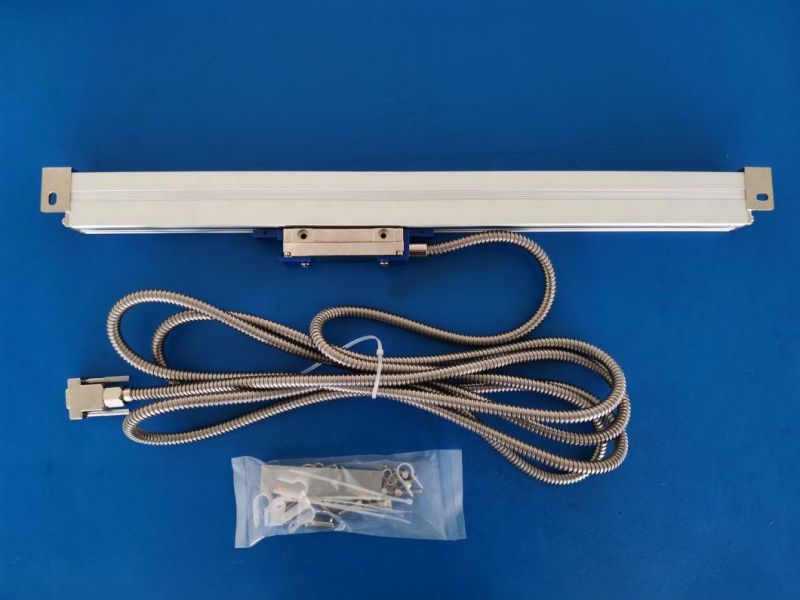

Linear Encoder for Milling Machine
Leader Precision Instrument Co., Ltd.- After-sales Service:18 Months Warranty
- Warranty:18 Months Warranty
- Resolution:0.005mm (Standard); 0.001mm (Optional)
- Effective Range:50mm-3000mm
- Output Signal:5V, Ttl or RS422
- Output Wave Form:Two 90 Phase-Shifted Sinusoidal Signals
Base Info
- Model NO.:LE0150-10A
- High Accuracy(μm):5+L,200
- Max. Response Speed:60m,Min
- Scale Grating Pitch:20μm
- Scale Referece Point Pitch:50mm
- Operating Temperature:0-40
- Storage Temperature:-20 to 50
- Transport Package:Standard Exporting Package
- Specification:SGS
- Trademark:Leader
- Origin:Guangdong
- HS Code:9031499090
- Production Capacity:5000 PCS,Year
Description
Usage:
The linear encoder is used to accurately detect and display the displacement of machine tools or measuring equipment together with the digital readout, which is installed on the milling machine, lathe machine, drilling machine and so on.
Features:
1) High accuracy optical glass
2) Scale reference points at a 50mm pitch to determine datum point for machining
3) Using 5 sets of bearing, assures excellent repeatability, positioning, good sliding and durability
4) Special process of aluminum alloy for water/oil proof and anti-dust
5) Suitable for milling, drilling and grinding machines, lathers, XY-tables, etc
6) Enhanced vibration resistance
7) Top quality rubber lips to avoid contamination
8) Easy installation and maintenance
Parameters:
1) Resolution: 0.005mm (standard); 0.001mm (optional)
2) Effective range(ER): 2-128"(50mm-3200mm)
3) Output signal: 5V, TTL (standard); RS422(optional)
4) Output wave form: Two 90° Phase-shifted sinusoidal signals
5) High accuracy: ± (5+L/200)µ M; L = Effective range (mm)
6) Max. Response Speed: 72M/min
7) Scale grating pitch: 20μm
8) Scale reference point pitch: 50mm
9) Operating temperature: 0 degree to 40 degree
10) Extension cable:
If the travel of the linear encoder is from 50mm to 900mm, the cable is 2m long
If the travel of the linear encoder is from 1000mm to 1500mm, the cable is 5m long
If the travel of the linear encoder is from 1600mm to 3000mm, the cable is 10m long
ResER | 50mm | 100mm | 150mm | 200m | 250mm |
0.005mm | LE0050-50A | LE0100-50A | LE0150-50A | LE0200-50A | LE0250-50A |
0.001mm | LE0050-10A | LE0100-10A | LE0150-10A | LE0200-10A | LE0250-10A |
ResER | 300mm | 350mm | 400mm | 450mm | 500mm |
0.005mm | LE0300-50A | LE0350-50A | LE0400-50A | LE0450-50A | LE0500-50A |
0.001mm | LE0300-10A | LE0350-10A | LE0400-10A | LE0450-10A | LE0500-10A |
ResER | 600mm | 700mm | 800mm | 900mm | 1000mm |
0.005mm | LE0600-50A | LE0700-50A | LE0800-50A | LE0900-50A | LE1000-50A |
0.001mm | LE0600-10A | LE0700-10A | LE0800-10A | LE0900-10A | LE1000-10A |
ResER | 1100mm | 1200mm | 1300mm | 1400mm | 1500mm |
0.005mm | LE1100-50A | LE1200-50A | LE1300-50A | LE1400-50A | LE1500-50A |
0.001mm | LE1100-10A | LE1200-10A | LE1300-10A | LE1400-10A | LE1500-10A |
ResER | 1600mm | 1700mm | 1800mm | 1900mm | 2000mm |
0.005mm | LE1600-50A | LE1700-50A | LE1800-50A | LE1900-50A | LE2000-50A |
0.001mm | LE1600-10A | LE1700-10A | LE1800-10A | LE1900-10A | LE2000-10A |
ResER | 2100mm | 22000mm | 2300mm | 2400mm | 2500mm |
0.005mm | LE2100-50A | LE2200-50A | LE2300-10A | LE2400-50A | LE2500-50A |
0.001mm | LE2100-10A | LE2200-10A | LE2300-10A | LE2400-10A | LE2500-10A |
ResER | 2600mm | 2700mm | 2800mm | 2900mm | 3000mm |
0.005mm | LE2600-50A | LE2700-50A | LE2800-50A | LE2900-50A | LE3000-50A |
0.001mm | LE2600-10A | LE2700-10A | LE2800-10A | LE2900-10A | LE3000-10A |
