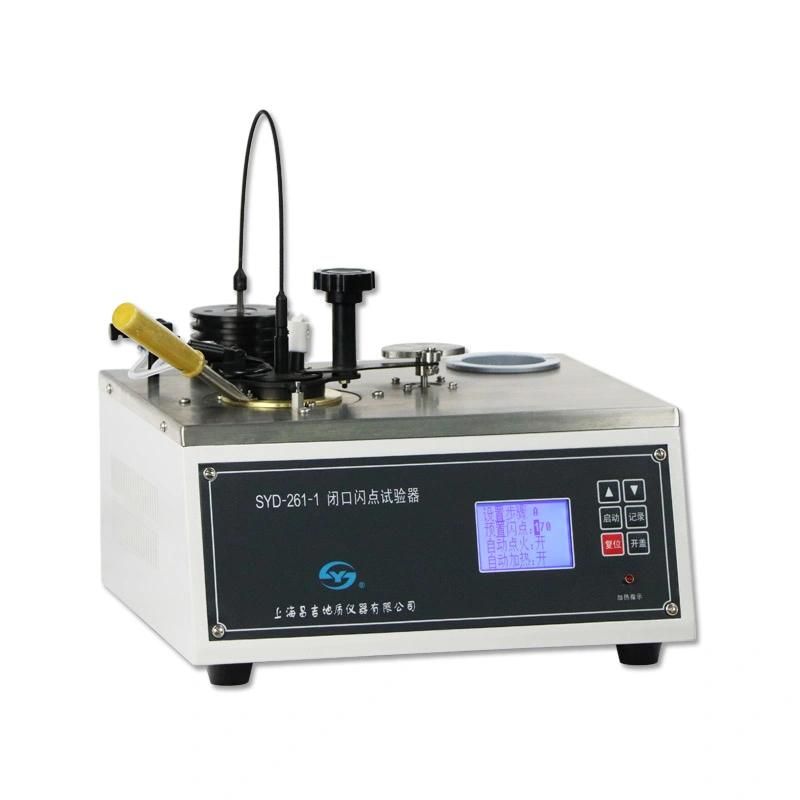

ASTM D93 SYD-261-1 Semi-automatic PMCC Flash Point Tester
Shanghai Changji Geological Instrument Co., Ltd.- Display：Colorful touchscreen
- Igniting mode：Electric ignition
- Data transmission mode：Bluetooth
- Range：RT~400ºC
- Accuracy：0.1 ºC
- Repeatability：≤8ºC
Base Info
- Model NO.：SYD-261-1
- Control：Fully automatic
- Printer：Built-in
- Transport Package：by Carton or by Wooden Case
- Specification：520mm*380mm*310mm
- Trademark：SHANGYI
- Origin：China
- HS Code：9021809090
- Production Capacity：1000 Sets,Month
Description
Main technical features1. Single chip microcomputer control technique.LCD screen displays.English man-machine interaction interface.The heating power is continuously step-less adjustable.The rate of heating up is exact.Easy setting for parameters.
2. The LCD screen has prompting menu,prompting input operation interface.It shows the setted parameters,real-time temperatures and other test parameters.Press the "record"button when the flash point appears.The screen will show and reserve the flash point.
3. The structure is newly design and small.Stainless steel table-board looks clean and beautiful.It can be used as long as equipped with gas or other civilian fuels.It is easy to use and test results exact.
Main technical specifications
1. Power supply:AC( 220±10% )V, 50Hz.
2. Total power consumption:≤650W;
3. Heating device:
(1) The furnace is silicon carbide material. Power is 600W.
(2) The heating power is adjustable from 0 W to 600W.
4. Heating rate:Procedure A: (5~6)ºC/min, Procedure B:(1~1.5)ºC/min.
5. Stirring device:
(1)Stirring motor: BYGH101 stepping motor
(2) Driving mode: flexible shaft
(3) Shaft size: 8mm×40mm
6. Stirring rate:Procedure A: (90~120)RPM, Procedure B: (250±10)RPM
7. Stand oil cup:
(1)Internal diameter:50.7mm~50.8mm
(2) Depth: 55.7mm~56.0mm
(3) Marking depth of oil testing capacity: 33.9mm~34.3mm;
(4) Oil test capacity: about 70ml;
8. Igniting device: (1) Igniting source: gas(or other civilian fuels,the same below)
9. Suitable environment:
Ambient temperature:(15~35)ºC
Relative humidity:≤85%
10.Dimension:340mm×330mm×380mm

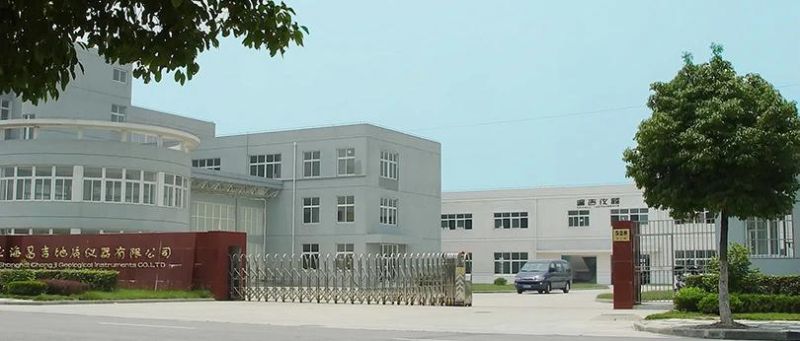

Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of the National Geology and Mineral Resource.

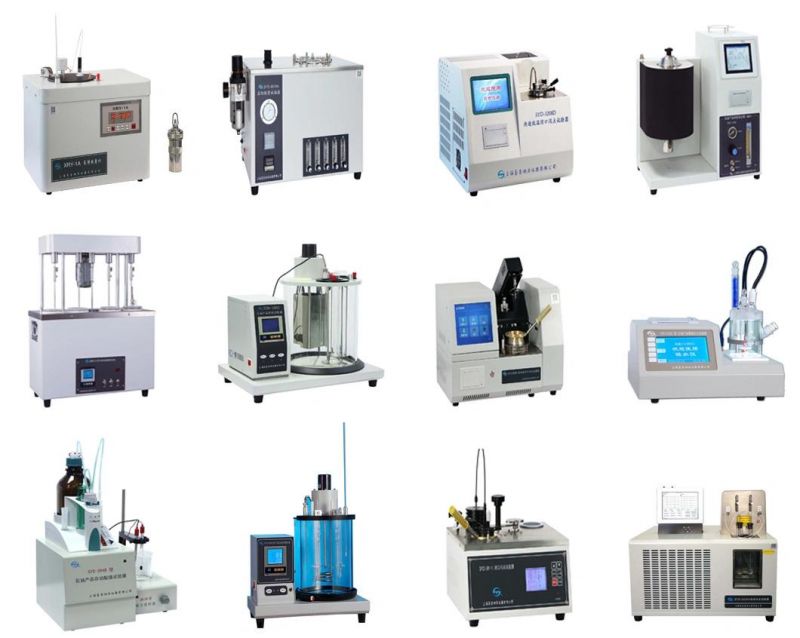

Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.
Shanghai Changji launches advanced products domestic and overseas with innovative concept continuously replying on 50 years' R&D experience in professional instruments. Among them, the automatic flash point tester, automatic viscometer, automatic moisture tester, automatic fluorescence sulfur analyzer, etc. have reached international leading level in technology. Won a wide range of trust and praise in the domestic and foreign customers. The sales value always be the first in domestic industry.
1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
You can contact us by email, online or other ways with detailed requirements, we will recommend right one accordingly.
3. What if I have difficulty in using the instrument?
Pls contact us any time when you have difficulty in using the instruments, we will provide equipment operation manual, operation video and so on. We can also provide training on line acoordingly.
4. When can I receive the goods?
Ordinary non customized models will be delivered within 7 working days. The transportation time is determined by the logistics company.
5. How to deliver?
For domestic customers, we usually provide door-to-door service. For customers overseas, we usually deliver the instruments to the designated places.
6. How about the packing ?
Wooden cases or hard boxes are used to prevent possible damage during transportation of the instruments.
7.How about the warranty?
Usually warranty is 12 months.
