• Model NO.：GD-17040 Fluorescence sulfur tester
• Oil Sample Quantity：2.5 Ml (It Is Equal to Sample Depth of 4.5 mm)
• Measurement Time：It Can Preset 60, 120, 240, 300, and 600 S at Rand
• Power Supply：AC 220V±20V, 50 Hz; Rated Power: 30 W
• Product Name：ASTM D4294 X-ray Fluorescence Sulfur-in-Oil Analyz
• Function：X-ray Fluorescence Sulfur in Oil Analyzer
• Product Type：Testing Equipment
• Temperature：5 ~ 35 ºC
• Display：LCD Display
• Size：468mm × 368mm × 136mm
• Transport Package：Wooden Case for Sulfur-in-Oil Analyzer
• Specification：ASTM, ISO, NES, KS and so on
• Trademark：GOLD
• Origin：Chongqing
• HS Code：9002909090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. GD-17040 Fluorescence sulfur tester Oil Sample Quantity 2.5 Ml (It Is Equal to Sample Depth of 4.5 mm) Measurement Time It Can Preset 60, 120, 240, 300, and 600 S at Rand Power Supply AC 220V±20V, 50 Hz; Rated Power: 30 W Product Name ASTM D4294 X-ray Fluorescence Sulfur-in-Oil Analyz Function X-ray Fluorescence Sulfur in Oil Analyzer Product Type Testing Equipment Temperature 5 ~ 35 ºC Display LCD Display Size 468mm × 368mm × 136mm Transport Package Wooden Case for Sulfur-in-Oil Analyzer Specification ASTM, ISO, NES, KS and so on Trademark GOLD Origin Chongqing HS Code 9002909090 Production Capacity 100 Sets / Month

Product Description

I. Summary

The ASTM D4294 X-ray Fluorescence Sulfur-in-Oil Analyzer is specially designed to determine sulfur content in the petroleum products. Adopts energy-dispersive principle, and with electrical, mechanical and microprocessor integration design, so the oil analyzer is rapid and accurate. It can meet the requirements of national standard of China GB/T 17040, SH/T0742 and GB/T11140 on repeatability and reproducibility, and it can also meet requirements of ASTM D4294-02. The sulfur oil analyzer provides a measure to determine sulfur content during petroleum or petrochemical production process.




(1) ASTM D4294 X-ray Fluorescence Sulfur-in-Oil Analyzer can be used to determine mass% of total sulfur in the crude petroleum, petroleum, heavy oil, diesel oil, gasoline, and naphtha.
(2) The fluorescence sulfur in oil analyzer can be used to determine total sulfur content in the products of coal chemical industry, such as primary benzene.
(3) The fluorscence sulfur in oil analyzer can be used to determine total sulfur or sulfide in other liquid or solid powder samples.

II. Main technical features

(1) With electrical, mechanical and microprocessor integration design, so ASTM D4294 X-ray Fluorescence Sulfur-in-Oil Analyzer is compact and beautiful;

(2) The sulfur analyzer can determine various products and in a wide measurement range. It is rapid for analysis and it only need little standard sample.

(3) Adopts fluorescence intensity ratio analysis methods, it can make correction to temperature and pressure automatically and it can also make correction to ratio of carbon and hydrogen (C/H).

(4) Large LCD for display; Man-machine conversation system; Sound alarm for operation mistake;

(5) The sulfur analyzer has self-diagnostic function, so it can determine its working state and electric parameters by making counting measurement and energy spectrum measurement using reference samples.

(6) Equipped with a RS232 serial port, it can connect with any computer or web system.

(7) The sulfur analyzer takes disposable sample cell with Mylar film, so it can avoid cross contamination. Sample cell is made by a multifunctional pressure shaping device, so it is rapid and convenient. There is a hole on the sample cell cover and you can record sample serial number, S% (m/m), and date on the sample cell cover.

(8) The sample holder is installed on a slide rail, so it can move out and move in automatically. It can move out from inside of the instrument for sample location and anti-leakage parts replacement. It is convenient and it can avoid any contamination to detection system.

(9) The sulfur analyzer can save large quantity of test data. You can browse test data and calibration curves at any time.

(10) The sulfur analyzer uses a thermal printer, so it is easy to replace printing paper.

(11) Tightly protection measures to avoid oil leakage. The sample cell is placed on the leakage protection device. The sample cell can enter into the detection system together with the leakage protection device only during sample analysis procedures. If the instrument is not at sample analysis state, the leakage protection device will move out, so this can avoid any contamination to the detection system.

(12) The sulfur analyzer can keep people from injury of X-ray radiation with its safe X-ray protection measures .

III. Main technical specifications


Item	Value

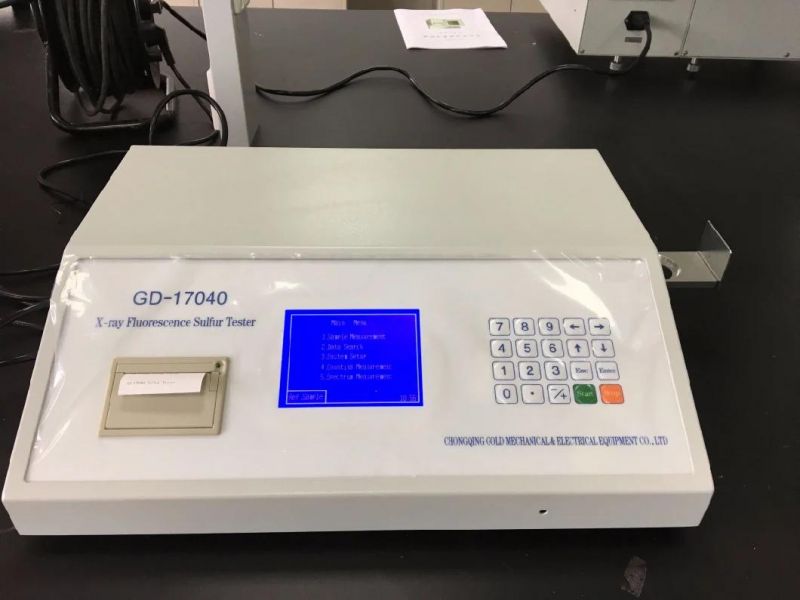

Model No	GD-17040 ASTM D4294 X-ray Fluorescence Sulfur-in-Oil Analyzer
Applicable standards	ASTM D4294; GB / T11140; ISO 8754; GB / T17040
Sulfur measurement range	7ppm is equal to 5%
Repeatability (r)	< 0.02894 (x + 0.1691)
Reproducibility (R)	0.1215 (x + 0.05555)
Sample volume	2.5ml (equivalent to sample depth 4mm)
Temperature	5 ~ 35 ºC
Relative humidity	≤ 85% (30 ºC)
Power supply	AC220V, ± 20V. 50HZ
Rated power	30W
Size	468mm×368mm×136mm
