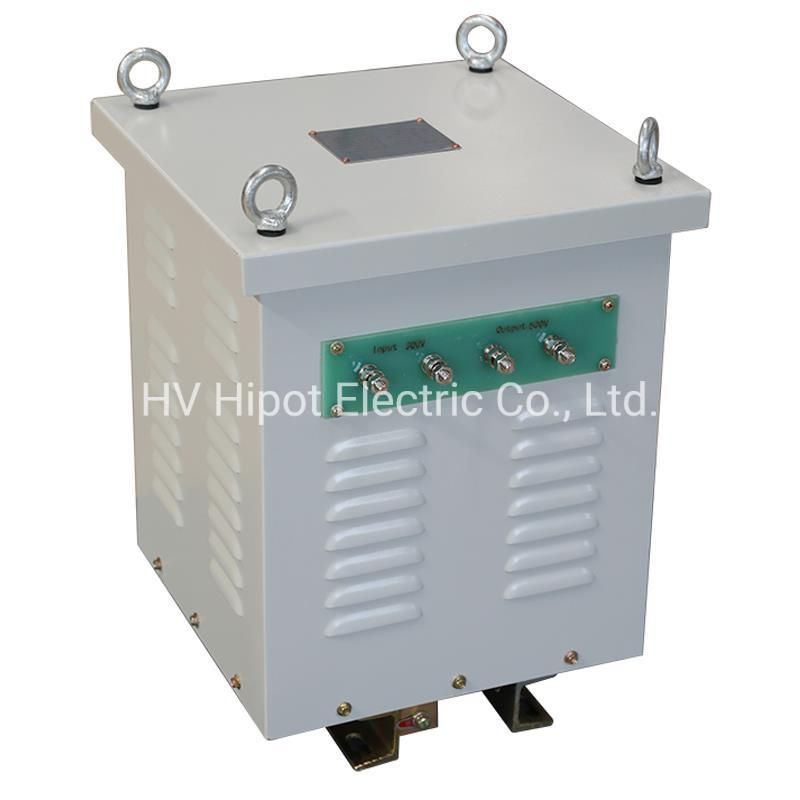

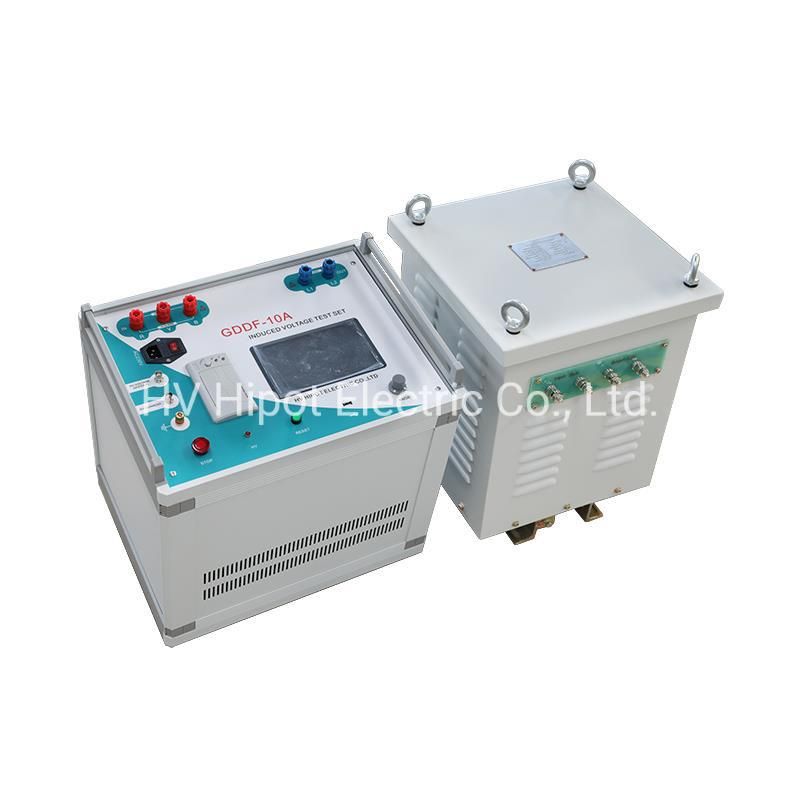

GDDF-10A Multiple Frequency Induced-Voltage Test Set for transformer winding

HV Hipot Electric Co., Ltd.
  • After-sales Service：yes
  • Warranty：1 year
  • Capacity：10kVA (Extendable)
  • Input Voltage：AC, Three Phase, 380V±10%
  • Output Voltage：0 to 350V
  • Test Frequency：at 50Hz, 100Hz, 150Hz and 200Hz

Base Info

  • Model NO.：GDDF-10A
  • Waveform Distortion：<3%
  • Dimensions (mm)：420(L)*300(W)*340(H)
  • Transport Package：Carton or Wooden Case
  • Specification：ISO, SGS
  • Trademark：HV Hipot
  • Origin：Wuhan China
  • HS Code：9030332000
  • Production Capacity：1000PCS,Year

Description

Capacity 10kVA (extendable)Input voltageAC, three phase, 380V±10% (Single phase 220V can be connected to A and C ends of power supply input. Then the capacity reduces by half.)Power frequency 50HzOutput voltage0 to 350V (If with an intermediate transformer, this voltage would be higher.)Test frequencyOptional at 50Hz, 100Hz, 150Hz and 200Hz.Waveform distortion<3%Dimensions (mm)420(L)*300(W)*340(H)Weight17kg
GDDF-10A Multiple Frequency Induced-Voltage Test Set for transformer windingGDDF-10A Multiple Frequency Induced-Voltage Test Set for transformer winding
We can customized,  welcome to consult with us!
