• Model NO.：GD-5096A
• Accuracy：+- 1 Centigrade Degree
• Performance：Aviation Gasoline, Aviation Turbine Fuels, Automot
• Standard：ASTM D130
• Transport Package：Standard Wooden Case
• Specification：ISO
• Trademark：GOLD
• Origin：Chongqing
• HS Code：9031809090
• Production Capacity：100 Sets ,Month

Basic Info.

Model NO. GD-5096A Accuracy +- 1 Centigrade Degree Performance Aviation Gasoline, Aviation Turbine Fuels, Automot Standard ASTM D130 Transport Package Standard Wooden Case Specification ISO Trademark GOLD Origin Chongqing HS Code 9031809090 Production Capacity 100 Sets /Month

Product Description

Introduction:

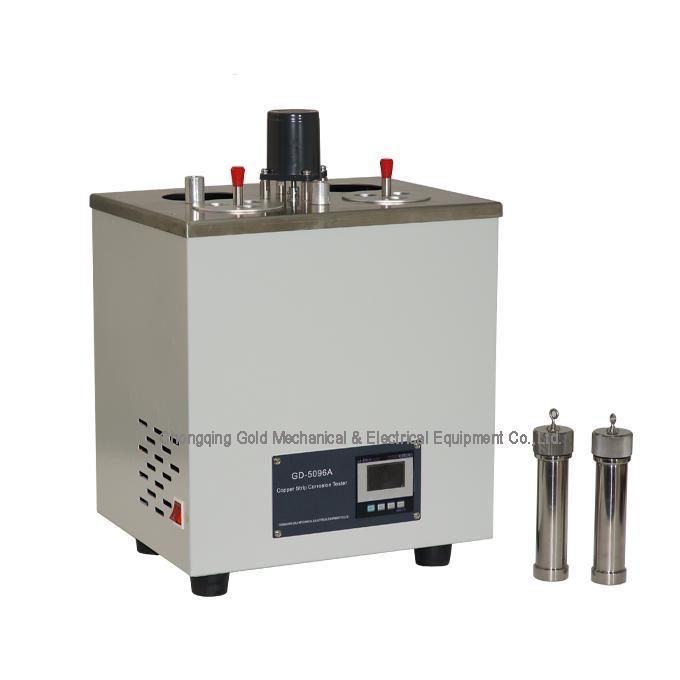

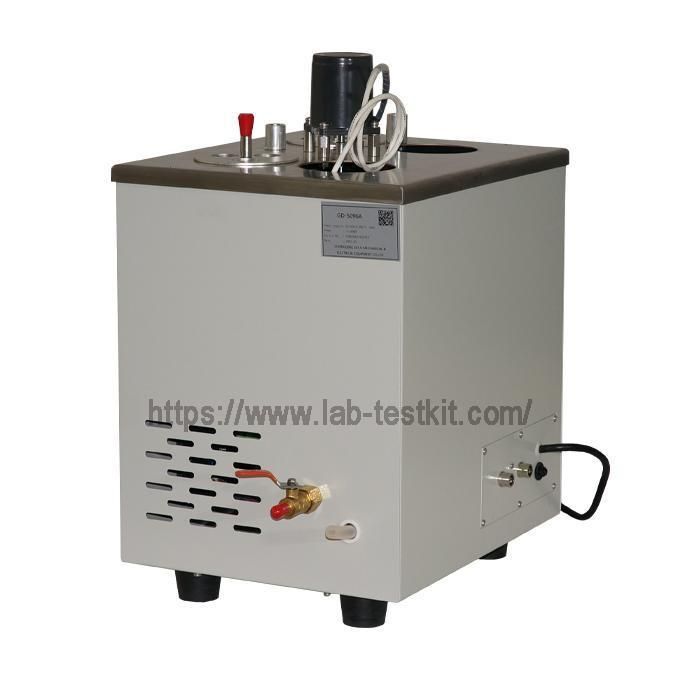

The ASTM D130 Copper Strip Corrosion Test Equipment is designed and made as per national standard of People's Republic of China GB/T 5096 Standard Test Method for Detection of Copper Corrosion from Petroleum Products by the Copper Strip Tarnish Test and ASTM D130 Standard Test Method for Detection of Copper Corrosion from Petroleum Products by Copper Strip Tarnish Test. Copper Testing Equipment is suitable to determine the corrosiveness to copper of aviation gasoline, aviation turbine fuels, automotive gasoline, tractor fuels, washing solvent, kerosene distillate, lubricating oil, and other petroleum products. The instrument has functions of temperature controlling, automatic timing and alarming.


I. Main technical features:

1. The copper strip corrosion tester adopts LCD temperature controller, heater and electric stirrer to form the constant bath. The temperature in bath is uniform. The temperature controller has timing function. It can control the test time and automatically timing. There will be alarm when finished.
2. The instrument has four sample holes. One bomb or three tubes can be put in each hole to be determined. The test efficiency is high.
3. The instrument equips a standard color board imported from USA. It can meet requirements of test method.


II. Main technical specifications:


1	Temperature sensor	Industrial platinum resistance, scale number is Pt100
2	Temperature controlling range	room temperature~100 ºC
3	Temperature display mode	LED display
4	Auxiliary heating power	1000 W
5	Time controlling range	1 minute~24 hours
6	Sample hole	4 pieces
7	Sample tested at one time	4 pieces~12 pieces
8	Ambient temperature	Room temperature~35 ºC
9	Relative humidity	≤85%
10	Total power consumption	Not more than 1800 W
