• Model NO.：NDJ-79A
• OEM：Yes
• Automaticity：Semi-Automatic
• Transport Package：by Wooden Case
• Specification：360mm*360mm*790mm, 15kgs
• Trademark：Shangyi
• Origin：China
• HS Code：9027809900
• Production Capacity：999,Month

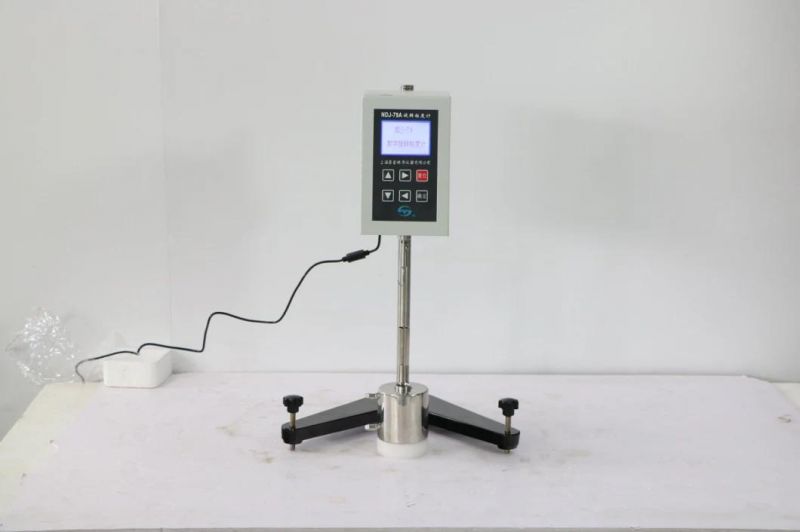

NDJ-79A Rotational Viscometer

Summary

This viscometer is the upgraded instrument of NDJ-79 rotational viscometer. It can be used to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids.

The instrument adopts advanced mechanical design technology and manufacturing process, using micro-computer technology to control speed,collect data and process data.Equipped with high-light LCD screen and micro-needle printer.The test data can show on the screen real time  and also output by printer.In addition,the instrument can also connect with PC via RS232 communication port.

The instrument has the characteristics of high sensitivity, reliability, convenience and good looking.It can be widely used to determine the viscosity of liquids such as greases, oil paints, plastics, pharmaceutics, coatings, adhesives, detergents, and other fluids.

I. Main technical specifications

1. Measurement range:  1mPa•s~1×106mPa•s

2. Spindle:   Unit II  1#  10#  100#,Unit III  0.1, 0.2, 0.4, 0.5, seven in total

3. Spindle speed:   7.5--750r/min stepless speed regulating

4. Measuring accuracy:   ±2%(F•S)

5. Temperature control range:   0ºC~100ºC

6. Power supply:    AC 220V±10%,50Hz

7. Working environment:

(1) Ambient temperature: 5~35ºC

(2) Relative humidity: ≤80%11. Relative humidity:    ≤85%

12. Dimension:   360mm×360mm×790mm

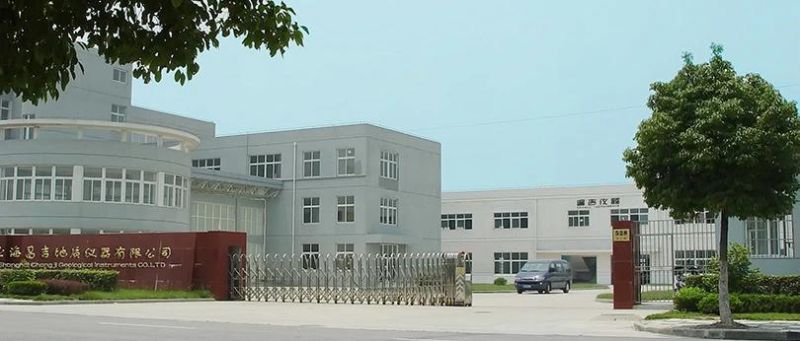

Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of  the National Geology and Mineral Resource.

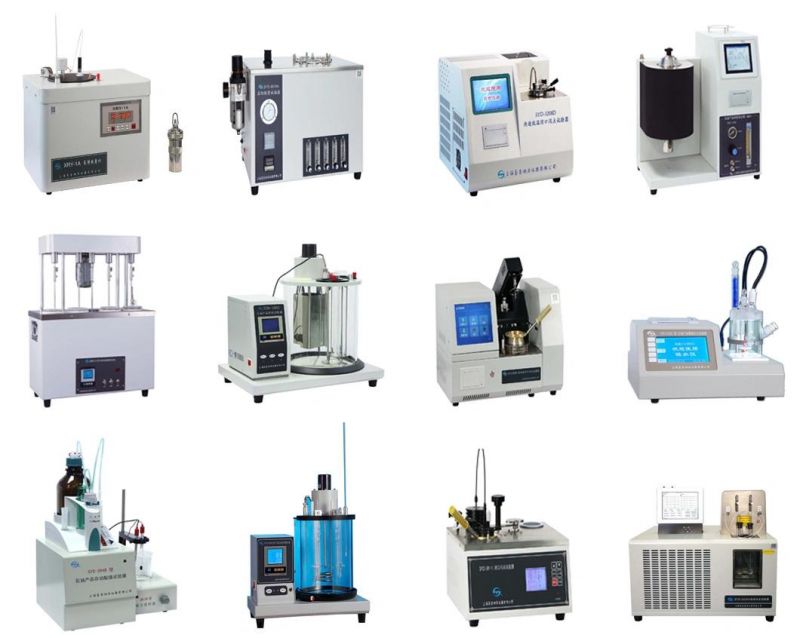

Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.

1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
