• Portable：Portable
• Type：Non-Dispersive Infrared Analysis
• Specification：50*30*40
• Trademark：KELISAIKE or OEM
• Origin：Nanjing, China
• Production Capacity：1000sets
• Package size per unit product：445.00cm * 360.00cm * 150.00cm
• Gross weight per unit product：10.000kg

Basic Info.

Portable Portable Type Non-Dispersive Infrared Analysis Specification 50*30*40 Trademark KELISAIKE or OEM Origin Nanjing, China Production Capacity 1000sets

Packaging & Delivery

Package size per unit product 445.00cm * 360.00cm * 150.00cm Gross weight per unit product 10.000kg

Product Description

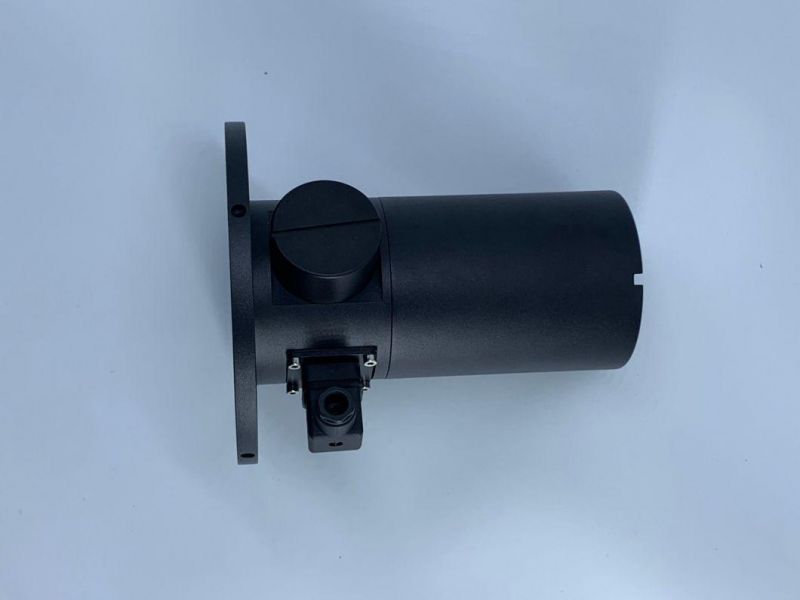

Online WT602B Dust Meter For Steel Manufacture
 Description


Working Principle
WT602B series products use the principle of laser backscatter to complete the measurement of flue dust concentration. The embedded high stable laser signal source passes through the flue and irradiates the smoke particles. The irradiated smoke particles will reflect the laser signal, and the reflected signal intensity changes positively with the smoke concentration. The concentration of flue dust can be calculated by a specific algorithm.

Main Characteristics:
1. Digital signal processing technology, high detection sensitivity and high linearity, eliminate the influence of stray light, and make the measurement more accurate;
2. Optical power adaptive stabilization technology to ensure the stability of the detection light source;
3. Very low zero-point drift design technology, automatic zero point calibration every twenty-four hours;
4. Adaptive full-scale calibration technology, automatic full-scale calibration every twentyfour hours to correct window lens contamination;
5. Anti-harsh environment design technology, extremely low temperature drift;
6. Online calibration, manual zero and span calibration can be achieved without disassembling the instrument;
7. The filter is not affected by sunlight;

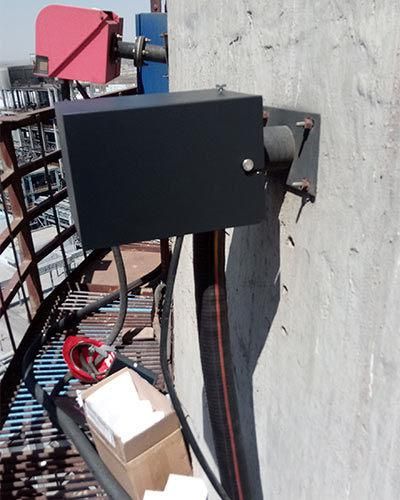

8. Integrated structure design, simple and quick installation and maintenance;
9. Provide multiple output interfaces and expandable interface options;
10. Provide the control software User monitor, collect data and control the instrument through the RS485 interface

TECHNICAL PARAMETER


Working Principle	Laser Backscatter Device
Explosion Proof Sign	Ex ia II C T6 Ga/Ex iaD 20 T80ºC(WT602B-EX)
Determination Object	Industrial waste gas and smoke
Mechanical Characteristic	Shell: All metal shell External dimension: Dust meter (205 × 160 × 160) mm (H × W × D) Explosion proof box: (300 × 300 × 167) mm (H × W × D) Dust Meter Weight:  2kg Explosion proof box Weight : 10.5kg Protection grade: IP66
Optical Characteristics	Working wavelength: (650 ± 20) nm
Technical Parameter	Measurement range: 0-200mg / m3, can be set. Zero drift: ± 2% F.S. / 24h Range drift: ± 2% F.S. / 24h Indication error: ± 15% (weighing method) Response time: ≤ 10s Flue diameter: (0.7-20) m
Power	DC: 24 V / 0.3A(WT602B) AC: 220 V ± 10%(WT602B-EX)
Environmental Working Conditions	Working temperature: (- 20 ~ + 50) ºC
Interface Signal	Analog output: (4-20) mA Digital interface: RS485

Option of the Explosionproof type:

The whole machine adopts intrinsically safe circuit design, which can adjust the status of the equipment when electrified, which is beneficial to maintenance. The host is equipped with an online calibration device

Explosion-proof mark: Ex iaII C T6 Ga/Ex iaD 20 T80ºC
Host size: (205×160×160)mm (H×W×D)
Explosion-proof box size: (300×300×167)mm (H×W×D)
Explosion-proof box weight: 10.5kg
