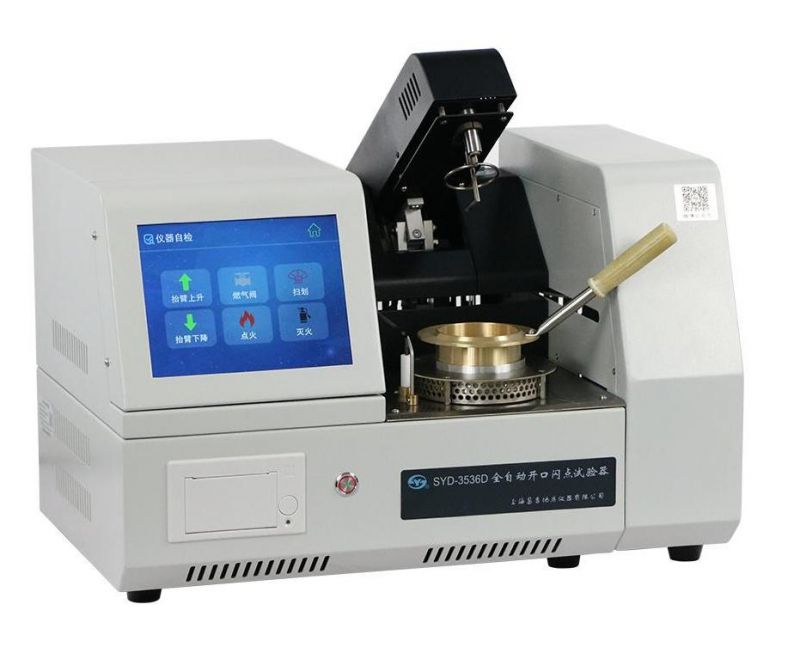

ASTM D92 SYD-3536D Automatic Cleveland Open Cup Flash Point Tester for Oil Testing
Shanghai Changji Geological Instrument Co., Ltd.- Display：Colorful touchscreen
- Igniting mode：Electric ignition
- Data transmission mode：Bluetooth
- Range：RT~400ºC
- Accuracy：0.1 ºC
- Repeatability：≤8ºC
Base Info
- Model NO.：SYD-3536D
- Control：Fully automatic
- Printer：Built-in
- Transport Package：by Carton or by Wooden Case
- Specification：520mm*380mm*310mm
- Trademark：SHANGYI
- Origin：China
- HS Code：9021809090
- Production Capacity：1000 Sets,Month
Description
Main technical features1. It adopts an 8-inch IPS high-definition capacitive screen. Using 32-bit ARM processor and high-precision AD chip, the test data and parameters are recorded in real time and displayed by curve.
2. Automatic measurement of atmospheric pressure, automatic correction of flash point value.
3. Equipped with Bluetooth interface.The user can query test data anytime.
4. Electronic ignition, gas flame..
5. Remote automatic upgrade to obtain the latest version, remote prediction, abnormal early warning, comprehensive evaluation and maintenance of instrument operation status.
Main technical specifications
1. Flash point determination: Ambient to 400ºC;Accuracy:0.1ºC
2. Heating rate: (1)Initial heating:(14~17)ºC/min
(2)It is (5-6) ºC / min after reaching the preset flash point 20 ºC
3. Igniting mode:(1)Electric ignition,
(2)Diameter of igniter:0.7mm~0.8mm
4. Fire extinguishing device: (1) when the fire point appears, it can automatically extinguish the fire and return to its original position; (2) it can also manually press the key to extinguish the fire.
5. Data transmission mode:Bluetooth
6. Ambient temperature:(15~35)ºC
7. Relative humidity:≤85%Full set and technical documents

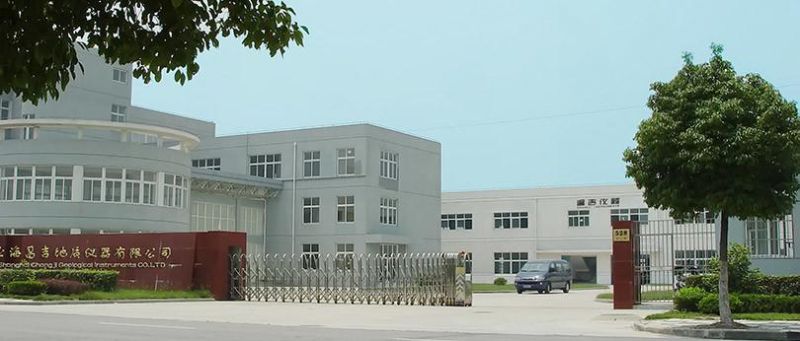

Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of the National Geology and Mineral Resource.

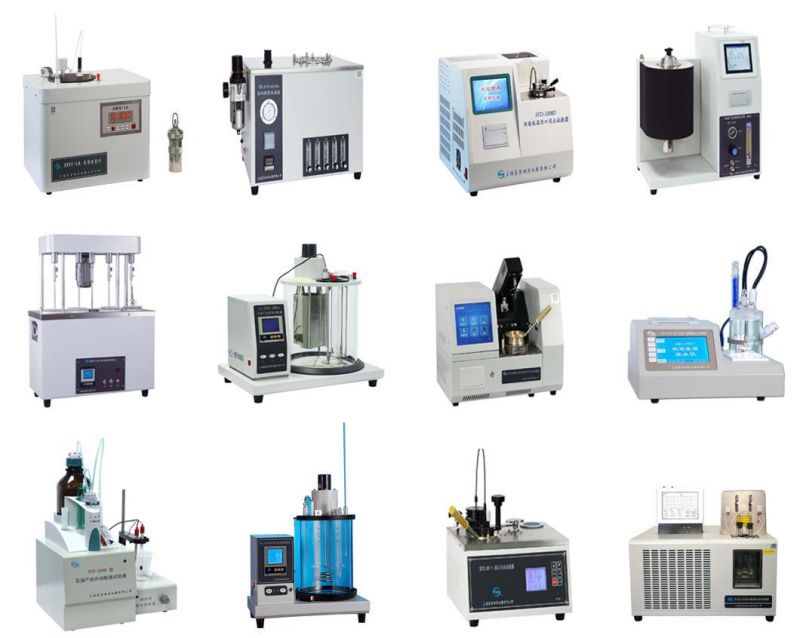

Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.
Shanghai Changji launches advanced products domestic and overseas with innovative concept continuously replying on 50 years' R&D experience in professional instruments. Among them, the automatic flash point tester, automatic viscometer, automatic moisture tester, automatic fluorescence sulfur analyzer, etc. have reached international leading level in technology. Won a wide range of trust and praise in the domestic and foreign customers. The sales value always be the first in domestic industry.
1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
You can contact us by email, online or other ways with detailed requirements, we will recommend right one accordingly.
3. What if I have difficulty in using the instrument?
Pls contact us any time when you have difficulty in using the instruments, we will provide equipment operation manual, operation video and so on. We can also provide training on line acoordingly.
4. When can I receive the goods?
Ordinary non customized models will be delivered within 7 working days. The transportation time is determined by the logistics company.
5. How to deliver?
For domestic customers, we usually provide door-to-door service. For customers overseas, we usually deliver the instruments to the designated places.
6. How about the packing ?
Wooden cases or hard boxes are used to prevent possible damage during transportation of the instruments.
7.How about the warranty?
Usually warranty is 12 months.
