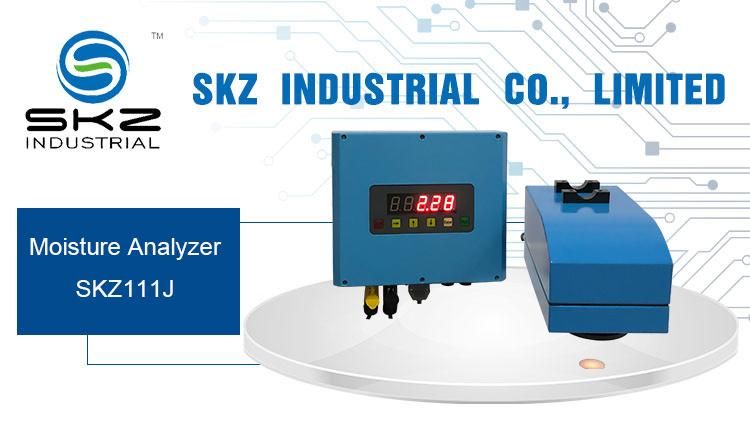

Skz111j CE 0-99% Infrared Online Digital Moisture Tester Moisture Analyzer Paper Cardboard Electronic Moisture Meter Tester Analyzer Moisture Meter
SKZ International Co., Ltd.- Type:Infrared Moisture Meter
- Display:LED
Base Info
- Model NO.:SKZ111J
- Product Name:1 Year Warranty LED 7 Digits Display Infrared Onli
- Current Signal:4-20mA
- Measuring Moisture Range:0-100%
- Model:Skz111j
- Measuring Distance:250mm±100mm
- Resolution:0.01%
- Accuracy:0.1%Fs-0.5%Fs
- Light Diameter:40mm
- Weight:17.5kg
- Dimension:440*340*510mm
- Trademark:SKZ
- HS Code:9027809990
- Production Capacity:1000
- Package size per unit product:44.00cm * 34.00cm * 51.00cm
- Gross weight per unit product:18.000kg
- Lead Time:14 days (1 - 10 Pieces)
To be negotiated ( > 10 Pieces)
Description
Basic Info.
Model NO. SKZ111J Product Name 1 Year Warranty LED 7 Digits Display Infrared Onli Current Signal 4-20mA Measuring Moisture Range 0-100% Model Skz111j Measuring Distance 250mm±100mm Resolution 0.01% Accuracy 0.1%Fs-0.5%Fs Light Diameter 40mm Weight 17.5kg Dimension 440*340*510mm Trademark SKZ HS Code 9027809990 Production Capacity 1000Packaging & Delivery
Package size per unit product 44.00cm * 34.00cm * 51.00cm Gross weight per unit product 18.000kg Lead Time 14 days (1 - 10 Pieces)To be negotiated ( > 10 Pieces)
Product Description
Skz111j CE 0-99% Infrared Online Digital Moisture Tester Moisture Analyzer Paper Cardboard electronic moisture meter tester analyzer Moisture Meter

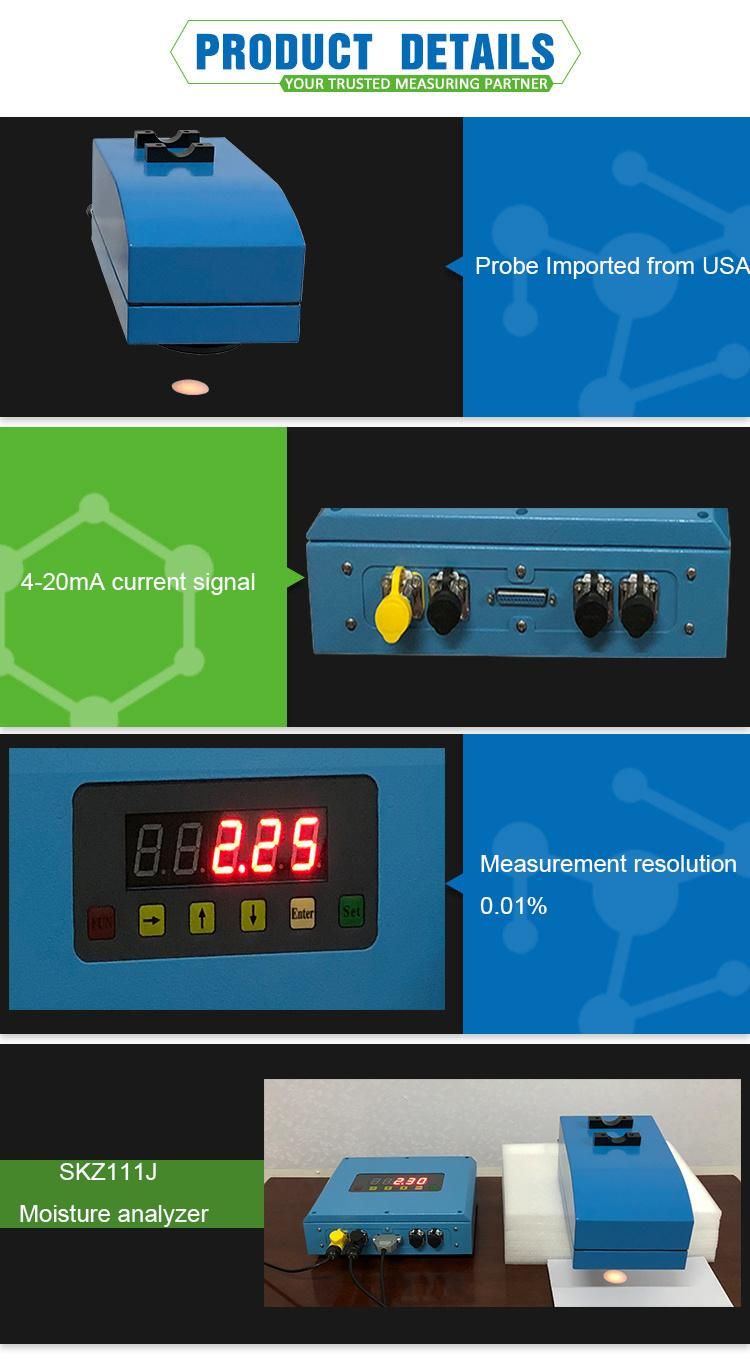

Infrared online moisture analyzer, non-contact, continuous, real-time, on-line measuring moisture. The distance is 20cm-40cm, high accuracy, wide range, and provides 4-20mA current signal, automated control,
Suitable for: food, metallurgy, tobacco, wood, paper processing, building materials, chemicals, mining, pharmaceutical, energy field.
Principle:
It is the use of water molecules on the infrared spectral absorption characteristics, to measure the moisture content of the measured object.
IR bands (0.78 ~ 2.5μm wavelength range of electromagnetic waves) absorption of water molecules is not the average, a strong wavelength at a low wavelength in the other. Use of this feature, infrared moisture analyzer emit different wavelengths of infrared light (5-beam, 6-beam, 8-beam, 10 beams), and receives the reflected signal measured material, to calculate the moisture content of the measured object.
Features:
1. Fast measurements:
With long-life high-speed brushless motor, imported high response infrared sensors, information processing chip FPGA + DSP + ARM9 combination, to ensure the real-time data acquisition, improve measurement precision and stability.
2. Reliability:
With dual optical detectors, the optical system for monitoring and compensation, moisture measurement from the sensor to ensure effects of aging.
3. Non-contact and fast response
Online fast continuous measurement and non-contact measurement, the measured object can fluctuate between 20-40cm, online dynamic real-time detection, to achieve a real-time control of product moisture content.
4. Stable performance, high precision
5-beam infrared moisture analyzer, its stability compared four beam and six beam greatly improved, in order to ensure the measurement more accurate and more stable.
5. Easy to install, easy to operate
Instrument easy installation, using a predetermined calibration, only need fix the intercept (zero) to complete the demarcation. Using single-chip digital operation, easy to operate.
Main Technical parameters:
Measuring range | 0-99% (can OEM) |
Measurement resolution | 0.01% |
Measuring accuracy | 0.1%FS-0.5%FS |
Repeatability | 0.1% |
Static accuracy | 0. 1% |
Light Diameter | 40mm |
Light beam | 5 |
Infrared wavelength | 1940nm |
Infrared bandwidth | ±50nm |
Filtering range | 0-2.5% |
Measuring channel | 10 |
Current signal | 4-20mA |
Upper and lower control | Self-edit by end user |
Measuring time | 0-60s |
Sampling frequency | 125 ms / time |
Measuring distance | 250mm±100mm |
Measuring thickness | 0.1-0.3mm |
Display | LED 7 digits display |
Cable length between probe and display | 5m |
I/O interface of probe | 7 pin aviation socket, 10 core aviation socket |
I/O interface of display device | 3-core cable, 25 holes D-type socket, 4-core cable, 3-core cable(with 7-core aerial socket) |
Power | 220V/50HZ, 100W |
Operation humidity | ≤90% |
Operation temperature | 0-50ºC |
Light interference | Not affected by external ambient light changes, no hood required for the probe |
Temperature effect | With temperature automatic compensation is basically not affected by external temperature changes |
Gross weight | 17.5kg |
Packing size | 440*340*510mm |
